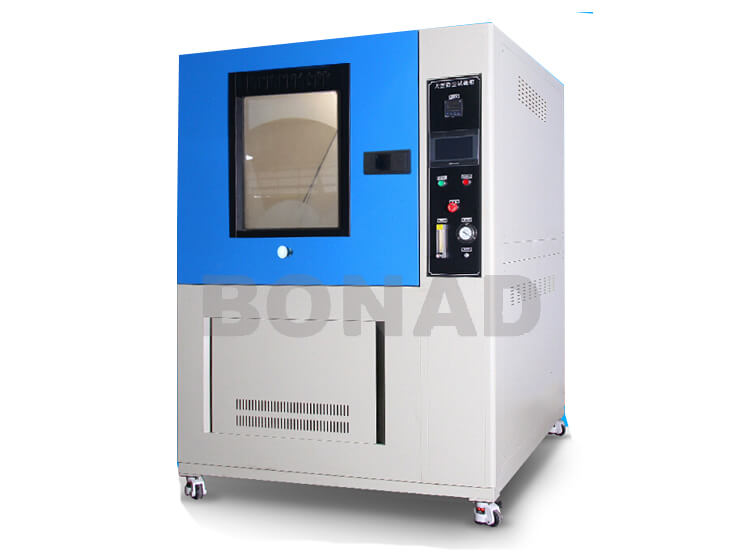

IP5X IP6X Sand and dust proof test chamber BND-IP56X

Product Description：Name：IP5X IP6X Sand and dust proof test chamberType：BND-IP56XTesting Standard:In accordance with IEC60529: 2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "Shell protection class (IP code)" 13.4,13.5 terms and Figure 3 and GB7000.1 "Lamps Part I: General requirements and tests" 9.2.1, 9.2.2 and the requirements of Figure 6.
Description

Product Description：

Name：IP5X IP6X Sand and dust proof test chamber

Type：BND-IP56X


Testing Standard:

In accordance with IEC60529: 2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "Shell protection class (IP code)" 13.4,13.5 terms and Figure 3 and GB7000.1 "Lamps Part I: General requirements and tests" 9.2.1, 9.2.2 and the requirements of Figure 6.


Usage:

The test box for low-voltage electrical appliances, electrical appliances, instruments, meters lamps, household appliances and other products in the storage, transportation and use of sand and dust are often affected by the environment. Especially cars, electrical appliances by the impact of dust is more significant. This equipment is used artificial dust environment, to test the test of dust resistance of the test equipment, test specimens in this environment in the sealing and corrosion resistance


Model

BND-IP56X -125L

BND-IP56X -500L

BND-IP56X -1000L

BND-IP56X -1500LA

BND-IP56X -1500LB

BND-IP56X -1500LS

Internal dimension

(Length*Depth*Height) mm

500*500* 500

800*800* 800

1000*1000* 1000

1000*1000* 1500

1000*1500* 1000

1500*1000* 1000

External dimension (L*D*H) mm

L950×D720×H1500

L1250×D1020×H1770

L1450×D1220×H1970

L1450*D1220*H1970

L1450*D1720*H1970

L2050*D1220*H1970

Testing Temp

RT+10~70℃(should be declare when order)

Humidity.Range

45%~75%（can’t display）

Mess diameter

50um

Wire spacing

75um

talc powder quantity

2～4kg/m

type of testing dust

dry talc powder

falling dust

Free fall

Testing time

0-999 H (adjust)

time of vibration

0-999H(adjust)

timing accuracy

±1 s

External material

A3 steel with powder coating

Internal material

SUS304stainless steel plate

gate structure

the door with a big window, and equipped with dust scraper

protective device

0-999/H（Adjust)

vacuum degree

0—10Kpa（Adjust)

speed of evacuation

0-2400L/H（Adjust）

0-4800 L/H（Adjust）

0-6000 L/H（Adjust））

0-6000 L/H（Adjust））

Power supply（V）

AC220V

380V

Power（KW）

1KW

1.5KW

2.0KW

3.5kw

Standard

IEC60529:1989+A1:1999、GB4208、GB7000.（IP5X、IP6X)
