Product Description：

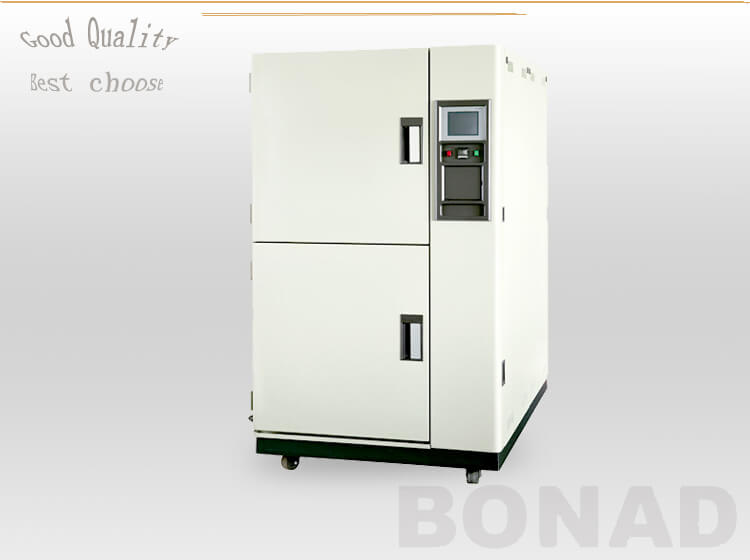

Name：Basket-type two box type Therrmal Shock Test Chambers
Type：BND-HLR2
Purpose:
It is necessary test equipment for the aerospace, automotive, home
appliances, research and other fields, used for examination and identification
of parameters, performance and the use of adaptive of electrical, electronics,
automotive electronics, materials and other products, after making high and low
temperature impact test. Applied to schools, factories, military, research, and
other organizations
Product Spec.and Technical parameter table | ||||||
model | BND-HLR2-80 | BND-HLR2-100 | BND-HLR2-150 | |||
performance | heating room | Temperature exposure range | ﹢60～﹢200oC | |||
The limit of preheating range | 200oC | |||||
heating time | ﹢20～﹢200℃≈40min | |||||
cold room | Temperature exposure range | 0～﹣65oC | ||||
The limit of preheating range | ﹣75oC | |||||
cooling time | ﹢20oC～﹣70oC≈60min | |||||
Basket | temperature range | ﹣65oC～150oC | ||||
temperature fluctuation | ≤0.5oC | |||||
temperature deviation | ≤±2oC | |||||
switching time | ≤10S | |||||
time of recovery temperature | ≤5min | |||||
construction | shell | cooling steel plate,surface spray | ||||
inner | steel plate | |||||
insulate | Rigid Polyurethane Foam+extra-fine glass-wool | |||||
refrigeration | mode | cascade refrigerating compressor | ||||
compressor | import compressor | |||||
heater | nickel chromium heating wire | |||||
blower | centrifugal blower | |||||
temperature sensor | Pt-resistance Pt100 | |||||
Controller | PLC controller,color LCD touchscreen display | |||||
recording equipment | temperature recorder(optional) | |||||
communication Interface | RS485 interface,RS232 interface,The software of Upper computer (optional) | |||||
Basket dimension（mm） | D | 400 | 400 | 500 | ||
W | 500 | 500 | 600 | |||
H | 400 | 500 | 500 | |||
Exterior dimension（mm） | D | 2500 | 2700 | 2900 | ||
W | 1000 | 1000 | 1130 | |||
H | 1950 | 2000 | 2100 | |||
Installed power(KW) | 19 | 32 | 40 | |||
Standard Configuration | A copy of the instruction and test report for the product, A certificate and quality assurance,two layers of basket with truckles. | |||||
Power Supply | AC380V 50Hz Three-phase four-wire + protective earth wire | |||||
The implementation of standards | GJB150.5 | |||||
Remark:1,The hanging touch screen(240mm) has not including in the width of exterior dimension;2,water-cooled(water temperature 10-28oC,hydraulic pressure 0.1-0.3MPa,to ensure the cooling performance) | ||||||
