Product Description：

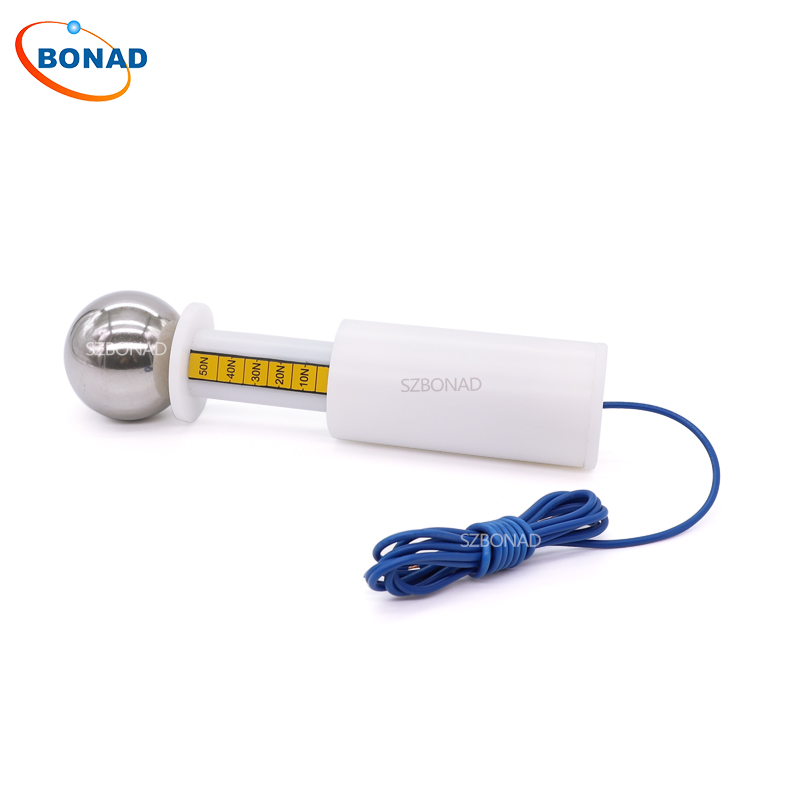

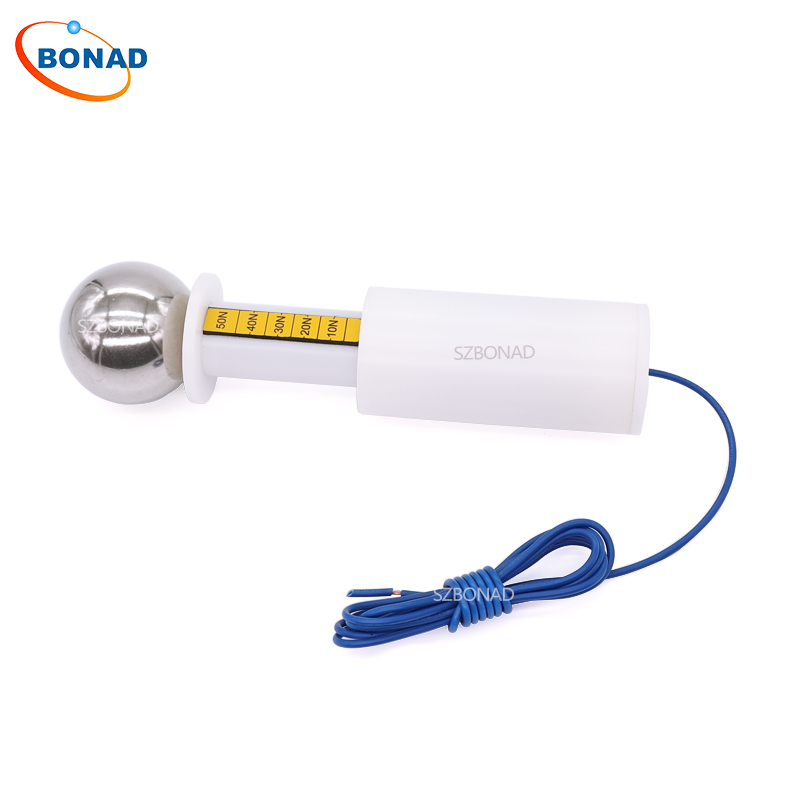

IEC61032 IP1X Test Probe A with 50N Force

Model:BND-AF

Specitication:

IP1X Test Probe A /Test Probe A

1, According to : GB/T4208-2008、IEC61032:1997、IEC60529:2001 and IEC60335,IEC61029,IEC60745,IEC60065,IEC60950

2, IP1X Test Probe A (Test Probe A) is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical Parameters:

1, Ball Diameter: 50mm

2, Baffle Plate Diameter: 45mm

3, Baffle Plate Thickness:4mm

4, Handle Diameter: 10mm

5, Handle Length :100mm

6, According to IEC61032 figure 1 (the Test probe A), table 6 GB/T4208-2008 (the first characteristics (1)

7,Force: 10N,20N,30N,40N,50N

Application:

1, Sphere can not touch the live parts or close to the dangerous parts.

2, In the testing requirements of prevented against access to the dangerous parts, the test steel ball without thrust need to be used with push tension dynamometers, and steel body for protective coating need to apply to 50 + 5 n (30 + 3 n) thrust
