UL / IEC / EN 61010 Test Probe Kits BND-TPK03

Product Description：UL / IEC / EN 61010 IEC61032 Test Probe Kits BND-TPK03Model:BND-TPK03Product Details:Several Different accessibility probe kits are available for specific standards. Kits can be created for other standards on request. Probe Kits offer substantial cost savings not to mention added convenience. The BND-TPK-03 contains the devices listed in the core of the UL / IEC / EN 61010 requirements. It includes the following:
Description

Product Description：

UL / IEC / EN 61010 IEC61032 Test Probe Kits BND-TPK03

Model:BND-TPK03


Product Details:

Several Different accessibility probe kits are available for specific standards. Kits can be created for other standards on request. Probe Kits offer substantial cost savings not to mention added convenience. The BND-TPK-03 contains the devices listed in the core of the UL / IEC / EN 61010 requirements. It includes the following:

· IEC Jointed Finger Probe (w/ banana jack in handle) (BND-B)

· Test Pin Probe: short (BND-13)

· Hazardous Live Parts Probe (BND-TB4)

· Rigid Finger Probe (BND-11)

· Preset Controls Probe (BND-TB3)

· Ball Pressure Tester (BND-QY102)

Meets Requirements for Testing Standard(s) including but not limited to:IEC 61010


Datasheet of the Test probe kit 03:

BND-B
test probe B 		ip2x test probe BIEC61032  IEC60950  IEC60335
IEC60529  IEC60045  IEC60884
IEC60745		Knurled Finger Diameter:12mm
Knurled Finger Length:80mm
Baffle Plate Diameter:50mm
Baffle Plate Length:100mm
Baffle Thickness:20mm
BND-13
Short Test Pin 		Short test pin 13IEC60065
IEC60335
IEC61032		The probe Diameter:Head 3mm Tail 4mm
The probe Length:15mm
Dam-board Diameter:25mm
Dam-board Thickness:4mm
BND-11
Rigid Test Probe 11 		Rigit test finger probe 11IEC61032
IEC60065
IEC60335
IEC60884		Nodular Finger Length:80mm
Nodular Finger Diameter:12mm
Dam-board Diameter:50mm
Dan-board Thickness:5mm
BND-QY102
Ball Pressure Apparatus 		ball pressure test apparatusIEC60695-10-2 IEC60884
IEC60320 IEC60335
IEC60598
IEC60950		Ball diameter:5MM
Total test pressure:20N±0.2N
Samples bearing Diameter:50mm,Length:100mm Solid stainless steel cylinder
BND-TB4
4MM test probe 		4mm diameter of test probe pinIEC61032  IEC60529Test Probe Length:100mm
Test probe Diameter:4mm
Dam-sphere Diameter:3.5mm
Handle Diameter:10mm
Handle Length:100mm
BND-TB3
3MM test probe 		3mm diameter of test probe pinIEC61032  IEC60529Test Probe Length:100mm
Test probe Diameter:3mm
Dam-sphere Diameter:3.5mm
Handle Diameter:10mm
Handle Length:100mm

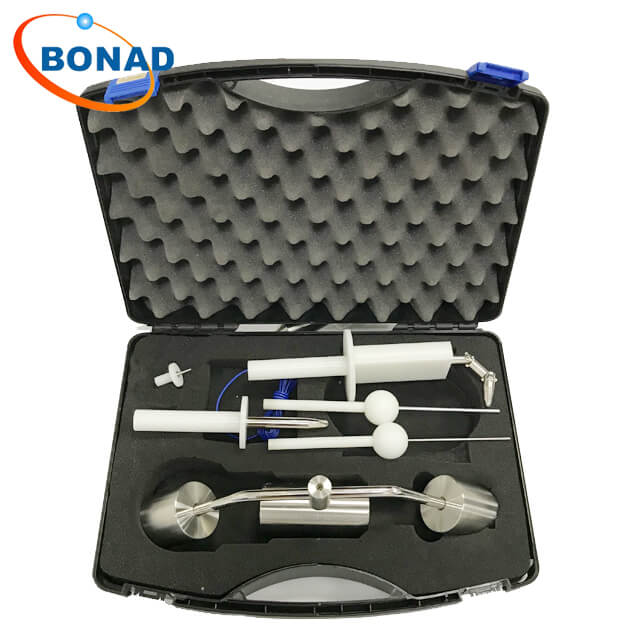

test-probe-kits-tpk03 (1).jpg
