IEC 60529 IPX5 IPX6 Water Jets Nozzle BND-IPX5G/BND-IPX6G

Product Description：Name：IEC 60529 IPX5 IPX6 Water Jets NozzleType：BND-IPX5G/BND-IPX6GPX5 AND IPX6 Spray nozzles are used for the verification test of the degree of protection to the risk of water penetration provided by the wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.The device consists of a jet handle that is equipped with a pressure gauge flow valve.

IPX5 and IPX6 water jet spray nozzle with digital flowmeter

JIS D0203 Rain And Spray Test Chamber BND-JIS-1000L

Description

Product Description：

Name：IEC 60529 IPX5 IPX6 Water Jets Nozzle

Type：BND-IPX5G/BND-IPX6G

PX5 AND IPX6 Spray nozzles are used for the verification test of the degree of protection to the risk of water penetration provided by the wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.

The device consists of a jet handle that is equipped with a pressure gauge flow valve.

The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from brass to prevent rust.

Item	IPX5	IPX6
The nozzle diameter	6.3 mm	12.5 mm
Water flow	12.5±0.625L/min.	100±0.625L/min.
Testing time	Not less than 1min/m2 (not less than 3 mins)
The distance from jet nozzle to enclosure	2.5~3m
Pressure Gauge	0 - 2.5 bar ( 0 - 0.25 MPa )
Reference standards	IEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle Material	Brass/Copper

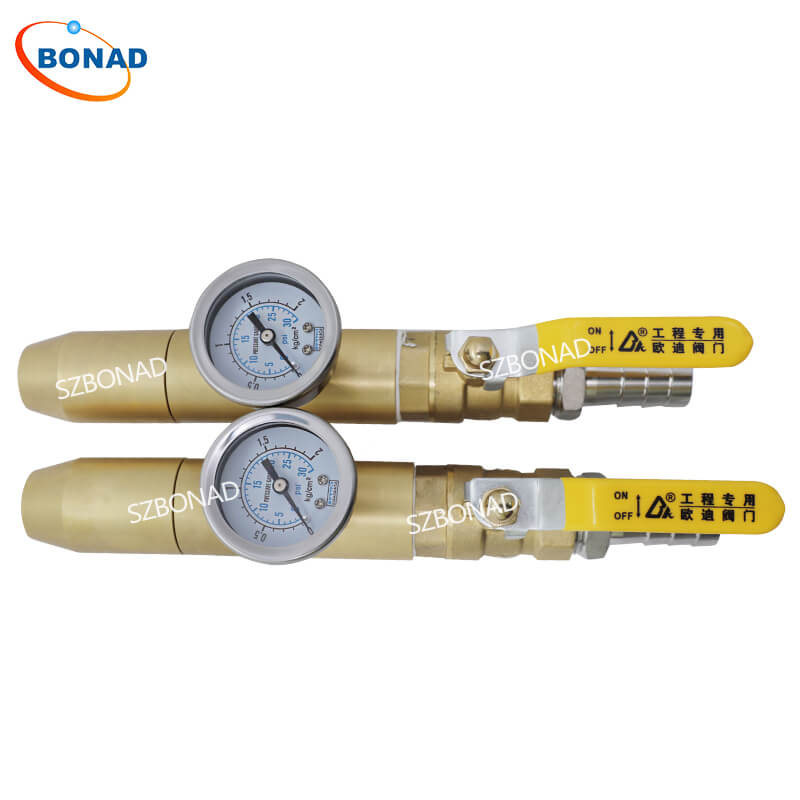

ipx5-ipx6-spray-nozzle (1).jpg
