Product Description：

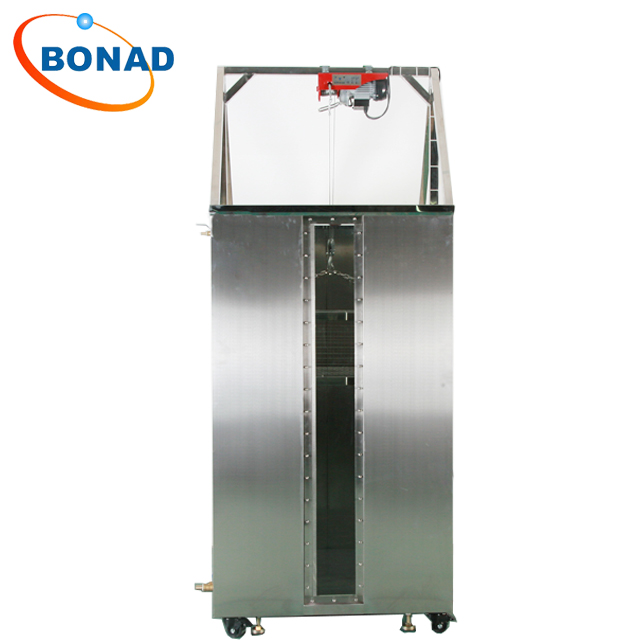

IPX7 Waterproof Test chamber with lift
Model:BND-IPX7BS
Materal: steel stainless
Technology parameter : | ||||||
No. | Model | BND-IPX7BS-108L | BND-IPX7BS-432L | BND-IPX7BS-960L | BND-IPX7BS-1200L | BND-IPX7BS-1728L |
1 | Inner size(mm) | 300*300*1200 | 600*600*1200 | 1000*800*1200 | 1000*1000*1200 | 1200*1200*1200 |
2 | outer size(mm) | 360*360*1300 | 660*660*1300 | 1080*880*1300 | 1080*1080*1300 | 1280*1280*1300 |
3 | Thickness of plate | 1.5mm | 1.5mm | 1.5mm | 2mm | 2mm |
4 | highest water depth | 1.2m | ||||
5 | Water adjustment | Manual adjustment | ||||
6 | Water level display | Stainless steel ruler（show several degree 1mm） | ||||
7 | Tank material | Stainless steel | ||||
8 | Standard | IEC60529:1989+A1:1999、GB4208、GB7000.（IPX7) | ||||
1. Install an electric lifting device (loading 300KG) above the chassis to place a large number of test samples.
2, stainless steel sample basket, the skeleton is made of stainless steel square pass, and the surrounding and bottom are made of stainless steel mesh.
