Product Description：

Name：Digital Electronic carton compression testing machine

Type：BND-ZX-01

Introduction:

Compression testing machine is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry.It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

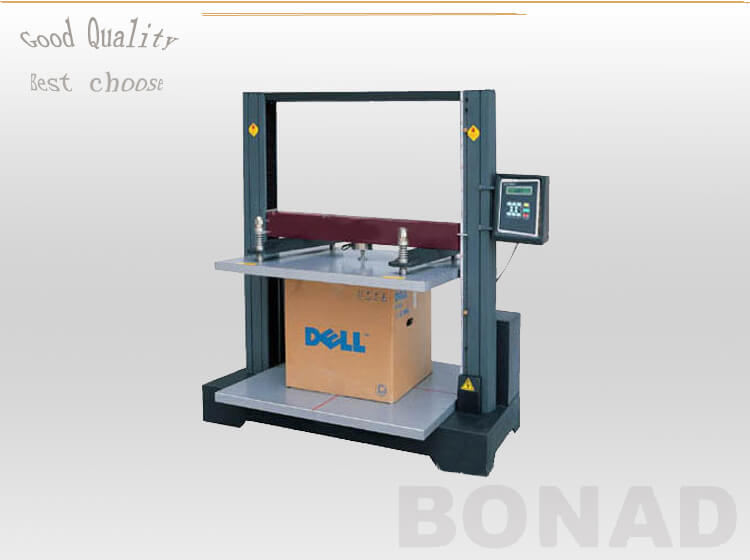

Digital Electronic carton compression testing machine

Technical Parameters

Transmission: screw drive

Capacity: 1000kg

Accuracy: ± 0.5 (± 1%)

Control System: AC variable geared motor

Display: LED large screen mesh

Stroke: 800mm (can be customized)

Test speed; 12-200mm / min (fixed speed 12.7,50,100,200mm / min Promise / or designated)

Test Space: 600 * 800 * 800,500 * 700 * 800 can be specified

olding pressure function: automatic

Weight: 590KG

Protection devices: leakage protection / overload protection automatic stop / travel limit protection

Printing: automatically print a report, print (maximum power, average, freedom and take the value breakpoint proportion, date)

Power: 220V

Remarks:

1. manuals, certificates, each of a quality assurance;

2. The machine comes with accessories common set of tools;

3. Warranty:one year;
